$150.00
-

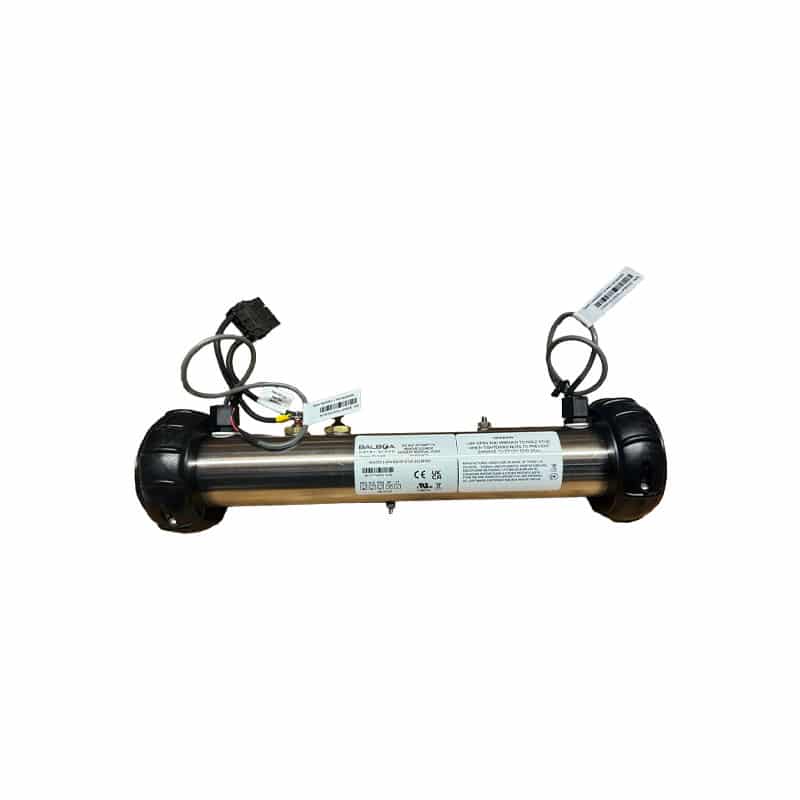

Balboa Plug N’ Click M7 2.0kW spa heater with Incoloy element, dual sensors and 2” unions. Pre-wired heater for BP series control systems.
$132.89
Balboa Plug N Click M7 3.0kW spa heater with Incoloy element and dual 24″ sensors. Pre-wired design for fast installation on BP series control systems.
$60.00
Balboa Pressure Switch
- Connections: 1/8 inch MPT screw thread to attach to heater tube. Switching mechanism at top has 2 x flat spade connectors to attach the contact wire.
- Dimensions: Height: 75mm Width: 50mm
- Compatible with: The only style of adjustable pressure switch Balboa have used in the last 10 years or more,.Used with systems such as M3TUV, Lite Leader and 2000 Value series including 2005LE with pressure switch.
$56.76
Balboa 30amp Relay 2 Speed Pump Expansion Board
The Balboa 2 pump relay expansion board is used to enable your control box to run up to an extra 2 pumps. is used in the BP200UX Balboa System to add a 1 speed pump.
- Manufacturers part number:55137
- Length: 135mm Height: 46mm
- Commonly used with: GL series
We are Proud to be 1 of the UK’s official distributors of Balboa hot tub parts.
$768.74

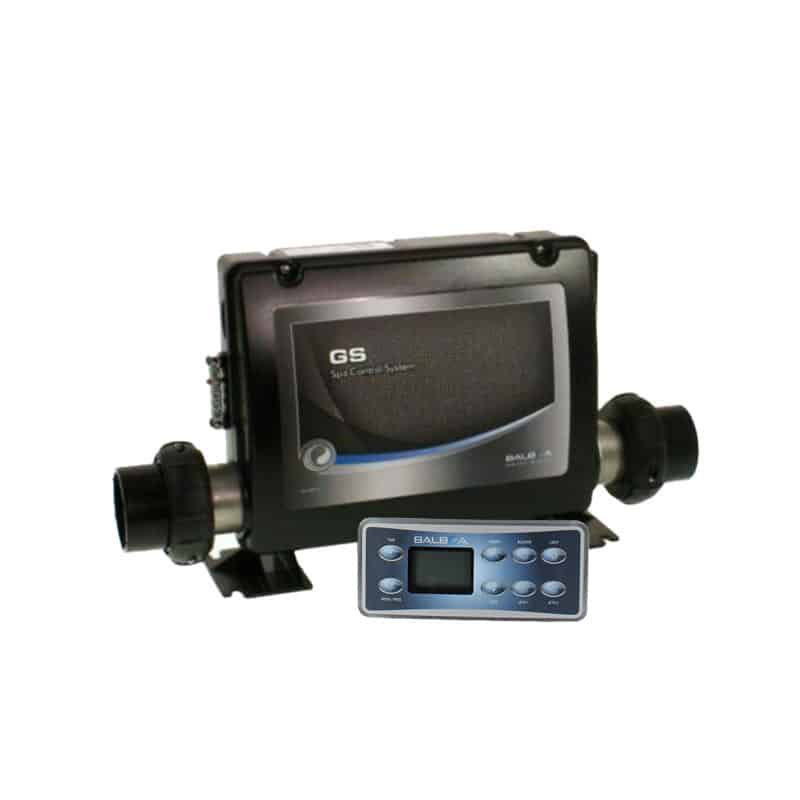

Balboa Retrofit Kit 5.1 GS523DZ + VL801D Touch Pad
NOTE : PACK DISCONTINUED. The control box is no longer manufactured by Balboa. You can either replace the PCB by a GS523DZ PCB or upgrade to a new Balboa BP pack (control box + topside).
Our Balboa GS523DZ spa control box bundle benefits from having a 3kw heater and a high-quality VL801D deluxe touch panel which is ideal for fitting over spa shell holes from other removed panels due to its size. The GS523DZ control box itself is a highly capable box and a preferred favorite of ours, it will operate a 3 pump and an air blower hot tub system but can also operate a four-pump system if no air blower is used. This Balboa bundle can also be used for upgrading from a Chinese spa control system or updating an old unserviceable one where parts are unobtainable.
Due to this system having a 3kw heater and being able to run this many electrical components, you will need to have a 32 amp supply to it from your home consumer unit so you may need an electrician to wire this for you if you don’t already have this installed.
- Volts: 230vac
- Hz: 50
- Watts: Amps: 16A OR 32A
- Connections: 2″ Unions
- Pump 1: Single or dual speed pump + circulation pump if required
- Pump 2:Single speed
- Pump 3: Single speed
- Heater: 1 x 3kW Heater
- Ozone: x 1
- Light: 1 x 12 volt
- Length: 500 mm (inc heater) 320 mm (box only) Width: 120 mm Height: 270mm Topside: 187 mm x 83 mm
$23.99
Balboa Sensor Assembly Pre M7
Single connector to the circuit board with two sensors. Used with systems such as M3TUV, Lite Leader and 2000 Value series including 2005LE with pressure switch.
- Temperature Probe Diameter: 9 mm
- Hi Limit Probe Diameter: 5 mm
- Temp Cable Length: 2438mm or 96 inches
- Hi limit cable length: 787mm or 31 inches
- Commonly used with: Systems such as M3TUV, Lite Leader and 2000 Value series including 2005LE with pressure switch.
$471.89
The Balboa Spa Touch 3 Clear Panel (G8535-03) is a genuine 5-inch capacitive touchscreen topside control designed for Balboa BP Series spa systems. Featuring a modern transparent frame, 2x brighter display, waterproof fully potted electronics, and a 4-pin Molex connection, it delivers intuitive control of temperature, jets, lighting, and filtration. Supplied complete with 7ft cable and ready for installation.
$505.96
The Balboa SpaTouch 4 (ST4) is a 5-inch high-resolution touchscreen topside control panel designed for Balboa BP Series spa systems. Featuring built-in WiFi and Bluetooth, it allows full spa control directly from the panel or remotely via the ControlMySpa™ app. Compatible with TP800 and TP900 supported systems.
$546.57
Upgrade your hot tub with genuine Balboa Spa Touch ST3+ black touchscreen topside control panels, designed exclusively for Balboa BP Series spa systems. Featuring a large Hi-Tec digital display, 12V touchscreen operation, and secure 4-pin grid connection, the ST3+ delivers reliable spa temperature control, filtration programming, and advanced diagnostics in a sleek modern design.
$295.42
Compact 2.8” colour touchscreen topside control for Balboa BP Series spa packs. Waterproof, responsive and fully compatible with BP200, BP600 and BP2100 systems.
$120.00
Balboa TP260T 4-Button Spa Topside Control Panel with LCD display and 4-pin connector. Compatible with Balboa BP Series control boxes.
$125.34
The Balboa TP500 (G8450) topside control panel is compatible with all BP Series spa systems including BP601 and BP2100. Featuring six buttons and a clear LCD display, this durable panel provides easy access to temperature, jets, lights, and auxiliary functions. Overlay not included – sold separately.
$121.97
Balboa TP Series 6-Button Spa Topside Control Panel with LCD display and 4-pin Mate ‘N’ Lock connector. Compatible with BP2100, BP601, and BP200 spa packs.
Please note that the TP500 has been discontinued. Please order the following and appropriate overlay if no stock available https://www.tropicalspasandpools.com/product/balboa-tp500-topside-panel/
$14.71
The Balboa TP600 replacement overlay is a genuine factory-fit part, pre-cut for TP600 topside controls. Features a durable, water-resistant finish and strong adhesive backing for easy installation and a refreshed look.
$14.93
The Balboa TP600 replacement overlay is a genuine factory-fit part, pre-cut for TP600 topside controls. Features a durable, water-resistant finish and strong adhesive backing for easy installation and a refreshed look.
$140.15
The Balboa TP600 is a 12V, 6-button replacement topside control panel for Balboa BP Series spa systems, including BP601 and BP2100. Features a clear Serial Standard display with scrolling text. Overlay not included.
