Description

Premium soaking comfort designed to last for years to come.

Premium 12V Touchscreen Panel for Balboa BP Spa Systems

Upgrade your hot tub control with the Balboa Spa Touch ST3+ Black Panel, a large-format touchscreen topside control designed specifically for Balboa BP Series spa packs. Combining modern aesthetics with advanced functionality, this high-performance control panel delivers intuitive operation, enhanced screen clarity, and reliable system diagnostics.

Engineered for seamless compatibility with BP systems, the ST3+ features a Hi-Tec large face digital touchscreen that clearly displays temperature settings, equipment status, time functions, and diagnostic error codes — making spa management effortless.

Key Features & Benefits

• 12V Full Touchscreen Interface – Responsive, easy-to-use digital control

• Large Hi-Tec Display Screen – Improved readability and visibility in all lighting conditions

• Advanced Diagnostic Display – Clearly shows Balboa BP error codes for faster troubleshooting

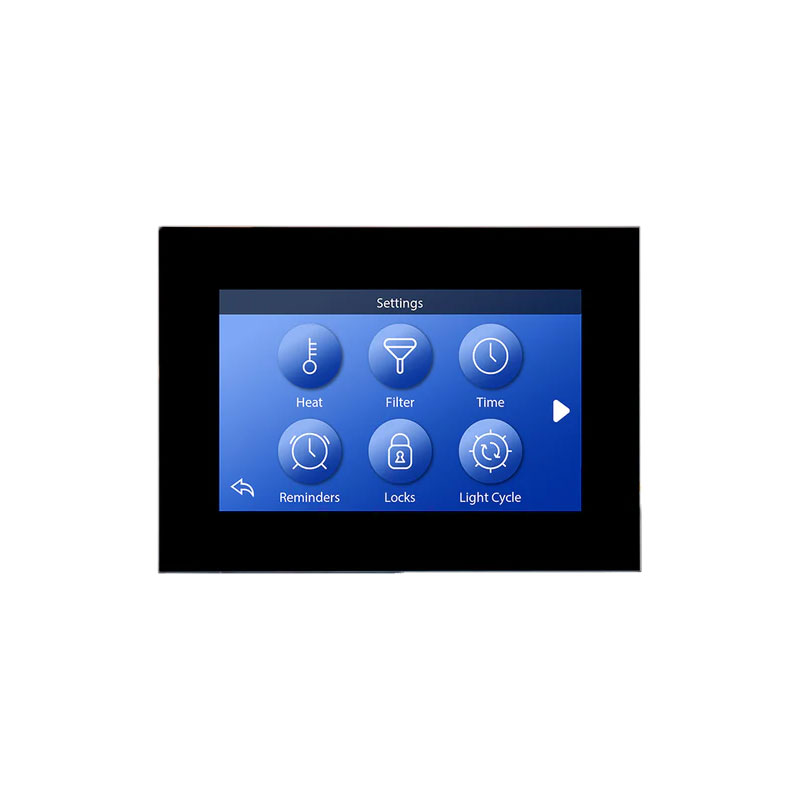

• Time & Programming Functions – Manage filtration cycles, heat modes, and system scheduling

• BP Series Exclusive Compatibility – Designed specifically for Balboa BP spa packs

• Sleek Black Finish – Modern, minimalist design to complement dark spa surrounds

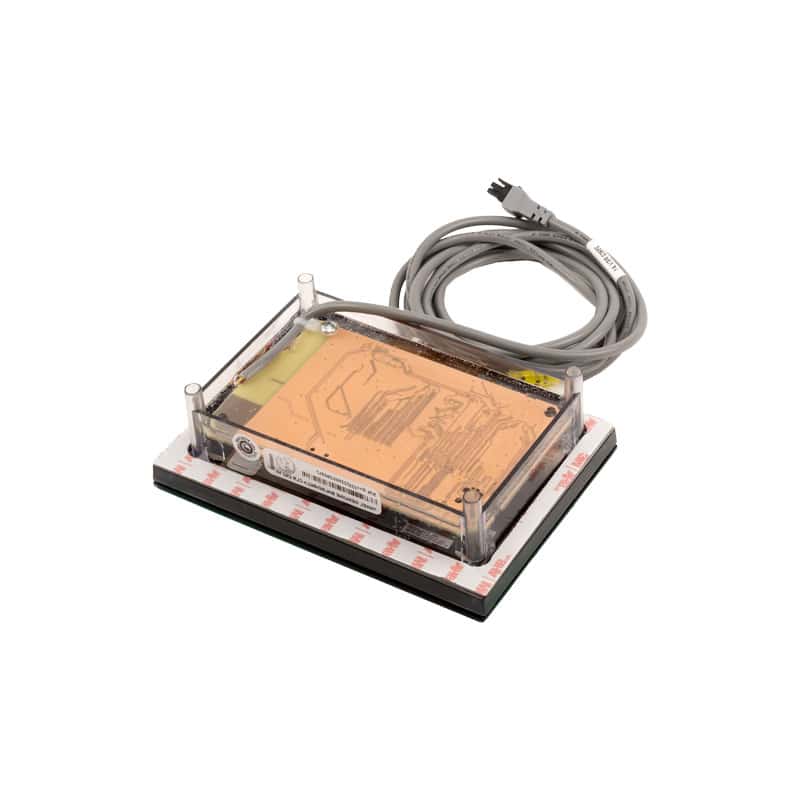

• Secure 4-Pin Grid Connector – Reliable connection using 4 black plastic pins

Technical Specifications

• Brand: Balboa Water Group

• Model: Spa Touch ST3+ (Black Panel)

• System Compatibility: Balboa BP Series

• Operating Voltage: 12V DC

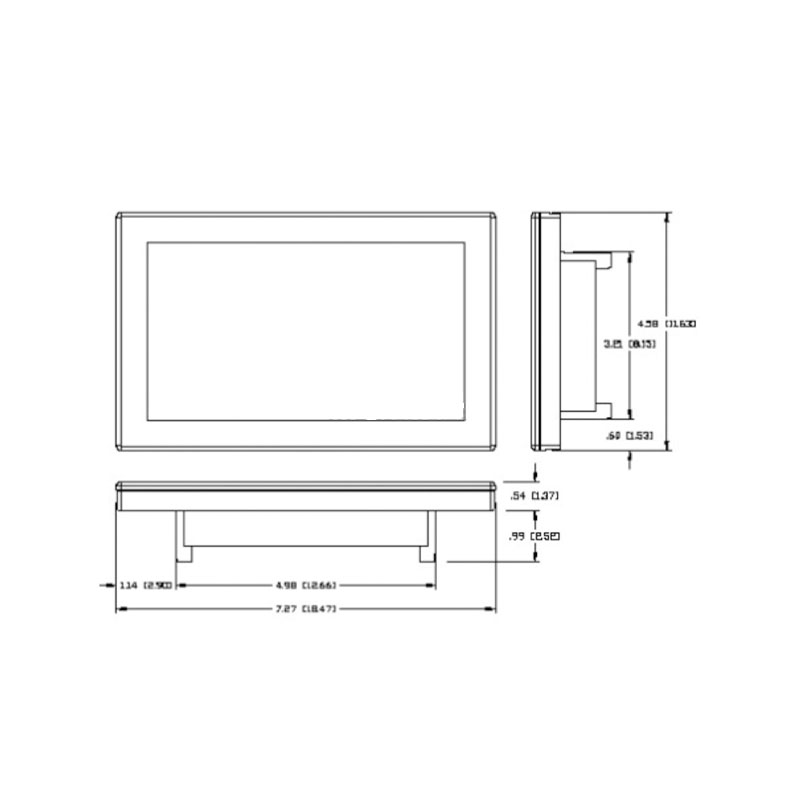

• Panel Dimensions: 185 mm (L) × 116 mm (W)

• Interface Type: Capacitive Touchscreen

• Connection Type: 4-pin grid formation

• Screen Type: Hi-Tec Digital Large Face Display

• Frame Colour: Black

Compatibility

Compatible With:

✔ Balboa BP Series spa packs

Not Compatible With:

✖ Balboa GS Series
✖ Balboa GL Series
✖ Balboa EL Series
✖ Non-Balboa control systems

Important: Always verify your spa pack model before ordering. Installing an incompatible topside panel may result in system errors or non-functioning controls.

Why Choose the Balboa Spa Touch ST3+?

The ST3+ is the larger screen variant within the SpaTouch 3 range, offering improved visibility and a premium user experience. Whether replacing a faulty panel or upgrading from an older TP series control, this touchscreen delivers reliable performance and enhanced spa functionality.

Installation Overview

• Disconnect power at the main isolator

• Remove the existing topside control

• Disconnect the current cable from the spa pack

• Connect the ST3+ 4-pin connector

• Secure panel into cutout

• Restore power and test

Professional installation is recommended if you are unfamiliar with spa electrical systems.

SEO Meta Title

Balboa Spa Touch ST3+ Black Panel | BP Series Touchscreen Topside Control

SEO Meta Description

Buy the Balboa Spa Touch ST3+ Black Topside Control Panel for BP Series spa systems. Large touchscreen display, 12V operation, 4-pin grid connection and advanced diagnostics.

Every item at Tropical Spas & Pools is checked before it is offered for sale.

Questions? Get in touch with Tropical Spas & Pools for full specs, compatibility, and fast dispatch.
