$95.62
Wet End 2.0HP Vico Ultrajet (Ultima)
Complete replacement Vico Ultrajet wet end with 2hp rated internal impeller and designed specifically for use with Hot Tubs and Spas. Vico is a pump manufacturing sub-brand of Balboa Water Group, Vico manufactured the now discontinued Ultrajet spa pump for Balboa many years ago. These distinctive shaped Ultrajet wet ends are the genuine replacement part from Vico and are still obtainable to us from Balboa.
- Plumbing connections: 2 x 2 inch unions.
- Wet End Frame Size – 48
- Wet End Type – Side Discharge
- Wet End Horsepower: 2HP
- Length: 190 mm Height: 160 mm Width: 140mm
- Commonly used with: This exact wet end can be found on very old spas by brands such as Canadian Spa, Hydropool Hot Tubs, Can Spa, Coast Mountain and others.
$86.14

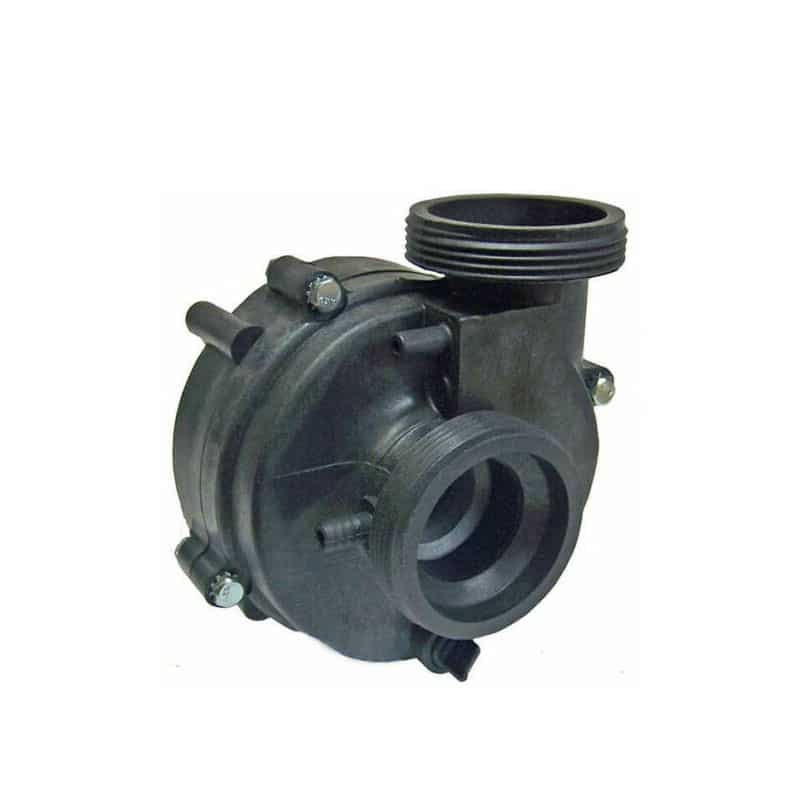

Wet End 3.0HP Vico Ultrajet (Ultima)
Complete replacement Vico Ultrajet wet end with 3hp rated internal impeller and designed specifically for use with Hot Tubs and Spas. Vico is a pump manufacturing sub-brand of Balboa Water Group, Vico manufactured the now discontinued Ultrajet spa pump for Balboa many years ago. These distinctive shaped Ultrajet wet ends are the genuine replacement part from Vico and are still obtainable to us from Balboa.
- Plumbing connections: 2 x 2 inch unions.
- Wet End Frame Size – 48
- Wet End Type – Side Discharge
- Wet End Horsepower: 3HP
- Length: 190 mm Height: 160 mm Width: 140mm
- Commonly used with: This exact wet end can be found on very old spas by brands such as Canadian Spa, Hydropool Hot Tubs, Can Spa, Coast Mountain and others.
$87.78
Wet End for 1.5HP Sta-Rite (HA440NG)
Complete replacement Balboa HA440NG spa pump wet end with 1.5hp rated internal impeller and designed specifically for use with Hot Tubs and Spas. The HA440NG wet end is manufactured by Sta-Rite for the Balboa Water Group.
This wet end must be bolted onto a Balboa motor only, it requires a Balboa motor as they have a long motor shaft length for the mechanical seal to work correctly.
- Plumbing connections: 2 inches
- Wet End Horsepower: 1.5HP
- Length: 195 mm Height: 150 mm Width: 165mm
- Commonly used with: This wet end is used on our HA440NG pumps but is also the same wet end used when the pump was called Sta-Rite and often labelled up as 1.0HP found on Master Spas in the past.
$96.20
Wet End for 2HP Durajet (Cascade)
Complete replacement Sta-Rite (Balboa) Durajet spa pump wet end with 2hp rated internal impeller and designed specifically for use with Hot Tubs and Spas. This wet end is very distinctive and can be easily recognised by having fins in the front volute face. The Sta-Rite Durajet pump made by Pentair was discontinued some time ago now but these genuine original wet ends along with the complete pumps have now been re-manufactured by Balboa.
- Plumbing connections: 2 x 2 inch unions.
- Wet End Frame Size – 48 or 56
- Wet End Type – Side Discharge
- Wet End Horsepower: 2HP
- Length: 190 mm Height: 188 mm Width: 130mm
- Commonly used with:This exact wet end can be found on USA spa brands such as Dimension One Spas, Master Spas, HotSprings & others.
$29.35
Wet End for DH1.0
Complete replacement Chinese LX DH1.0 circulation spa pump wet end with 1hp rated internal impeller and designed specifically for use with Hot Tubs and Spas. LX wet ends are unique to each model of LX spa pump so if you have a DH1.0 circulation pump this wet end this is the only replacement for it, order with confidence.
- Wet End Type: Centre Discharge
- Amps: 3.6
- Volts: 230
- Hz: 50
- RPM: 2900
- Wet End Horsepower: 1HP
- Plumbing connections: 1.5inch inlet and outlet Male – Buttress thread
- Length: 125 mm Height: 175 mm Width: 155 mm
- Commonly used with: DH1.0 pump from LX
$77.08
Wet End for JA200
Complete replacement Chinese JA200 spa pump wet end with 4hp rated internal impeller and designed specifically for use with Hot Tubs and Spas. LX wet ends are unique to each model of LX spa pump so if you have a JA200 pump this wet end this is the only replacement for it, order with confidence.
- Wet End Type: Centre Discharge
- Wet End Horsepower: 2HP
- Plumbing connections: Outlet – 1.5 inches -Inlet – 1.5 inches
- Length: 186 mm Height: 201 mm Depth: 126mm
- Commonly used with: LX TDA200/JA200 pumps
$48.00
Wet End for JA35 and JA50
Complete replacement LX JA35 & JA50 circulation spa pump wet end with 1hp rated internal impeller and designed specifically for use with Hot Tubs and Spas. LX wet ends are unique to each model of LX spa pump so if you have a JA35 or JA50 circulation pump this wet end this is the only replacement for it, order with confidence.
- Wet End Type: Centre Discharge
- Wet End Impeller HP: 1.5
- Wet End Horsepower: 0.5HP
- Plumbing connections: Outlet – 1.5 inches (63mm Thread OD)-Inlet – 1.5 inches (63mm Thread OD)
- Length: 125 mm Height: 175 mm Width: 155 mm
- Commonly used with: JA75 and JA100
$46.50

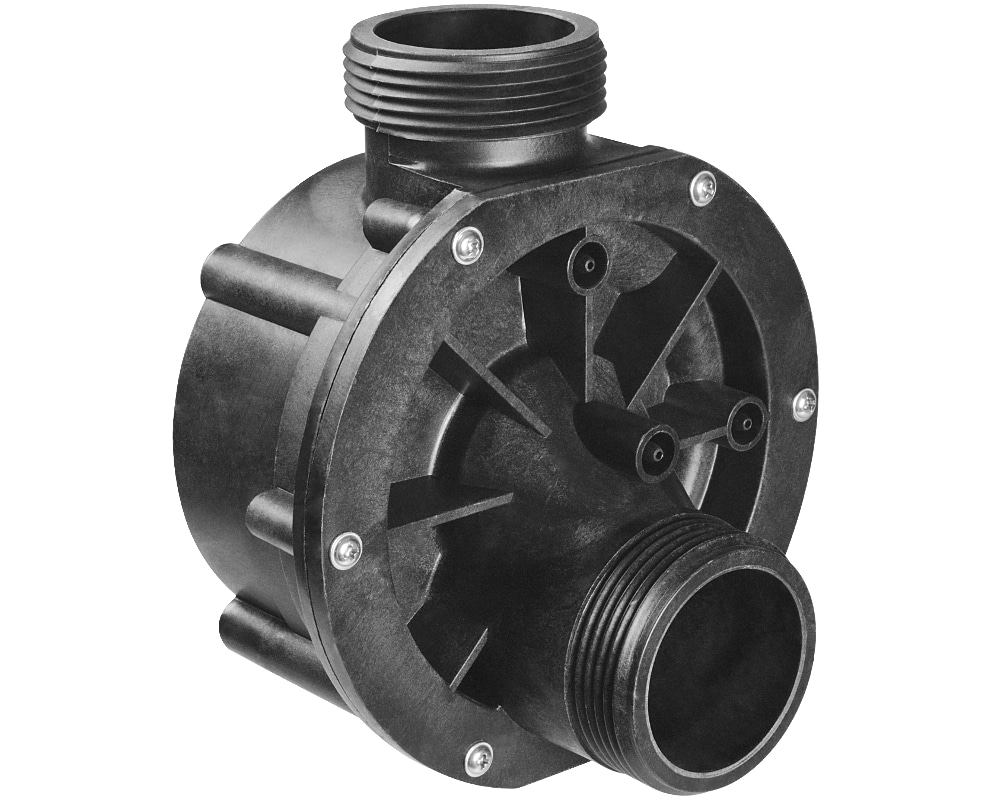

Wet End for JA75 and JA100
Complete replacement LX JA75 & JA100circulation spa pump wet end with 1hp rated internal impeller and designed specifically for use with Hot Tubs and Spas. LX wet ends are unique to each model of LX spa pump so if you have a JA35 or JA50 circulation pump this wet end this is the only replacement for it, order with confidence.
- Wet End Type: Centre Discharge
- Wet End Impeller HP: 1.5
- Wet End Horsepower: 1HP
- Plumbing connections: Outlet – 1.5 inches (63mm Thread OD)-Inlet – 1.5 inches (63mm Thread OD)
- Length: 125 mm Height: 175 mm Width: 155 mm
- Commonly used with: JA75 and JA100
$56.52
Wet End for LP200 and WP200
Complete replacement LX LP200 & WP200-II spa pump wet end with 2hp rated internal impeller and designed specifically for use with Hot Tubs and Spas. LX wet ends are unique to each model of LX spa pump so if you have a WP200 or LP200 pump this wet end this is the only replacement for it, order with confidence.
- Wet End Type: Side Discharge
- Wet End Horsepower: 2HP
- Plumbing connections: Outlet – 2 inches 78mm Thread OD-Inlet – 2 inches 78mm Thread OD
- Length: 140 mm Height: 210 mm Width: 195 mm
- Commonly used with: LP200 and WP200 pumps
$58.46
Wet End for LP300 & WP300
Complete replacement LP300 and WP300 spa pump wet end with 2hp rated internal impeller and designed specifically for use with Hot Tubs and Spas. LX wet ends are unique to each model of LX spa pump so if you have a WP200 or LP200 pump this wet end this is the only replacement for it, order with confidence.
- Wet End Type: Side Discharge
- Wet End Horsepower: 3HP
- Plumbing connections: Outlet – 2 inches 78mm Thread OD-Inlet – 2 inches 78mm Thread OD
- Length: 202 mm Height: 195 mm Depth: 140 mm
- Commonly used with: LP300 and WP300 pumps
$52.91
Wet End for LX EA350
Complete replacement Chinese LX EA3500 spa pump wet end with 4hp rated internal impeller and designed specifically for use with Hot Tubs and Spas. LX wet ends are unique to each model of LX spa pump so if you have a LX EA350 pump this wet end this is the only replacement for it, order with confidence.
- Wet End Type: Centre Discharge
- Wet End Horsepower: 1HP
- Plumbing connections: Outlet – 1.5 inches -Inlet – 1.5 inches
- Length: 185 mm Height: 165 mm Depth: 155mm
- Commonly used with: Wet End for LX EA350
$72.83
Wet End for LX TDA150
Complete replacement Chinese LX TDA150 spa pump wet end with 4hp rated internal impeller and designed specifically for use with Hot Tubs and Spas. LX wet ends are unique to each model of LX spa pump so if you have a LX TDA150 pump this wet end this is the only replacement for it, order with confidence.
- Wet End Type: Centre Discharge
- Wet End Horsepower: 1.5HP
- Plumbing connections: Outlet – 1.5 inches -Inlet – 1.5 inches
- Length: 186 mm Height: 216 mm Depth: 140mm
- Commonly used with: Wet End for LX TDA150
$73.91
Wet End for LX TDA200
Complete replacement Chinese LX TDA200 spa pump wet end with 4hp rated internal impeller and designed specifically for use with Hot Tubs and Spas. LX wet ends are unique to each model of LX spa pump so if you have a LX TDA200 pump this wet end this is the only replacement for it, order with confidence.
- Wet End Type: Centre Discharge
- Wet End Horsepower: .2HP
- Plumbing connections: Outlet – 1.5 inches -Inlet – 1.5 inches
- Length: 186 mm Height: 216 mm Depth: 140mm
- Commonly used with: Wet End for LX TDA200
$58.07
Wet End for LX TDA35 and TDA50
Complete replacement Chinese TDA35 and TDA50 spa pump wet end with 4hp rated internal impeller and designed specifically for use with Hot Tubs and Spas. LX wet ends are unique to each model of LX spa pump so if you have a TDA35 and TDA50 pump this wet end this is the only replacement for it, order with confidence.
- Wet End Type: Centre Discharge
- Wet End Horsepower: 0.5HP
- Plumbing connections: Outlet – 1.5 inches -Inlet – 1.5 inches
- Length: 153 mm Height: 187 mm Depth: 126mm
- Commonly used with: LX TDA35 and TDA50 pumps
$56.98
Wet End for LX TDA75 and TDA100
Complete replacement Chinese LX TDA75 and TDA100 spa pump wet end with 4hp rated internal impeller and designed specifically for use with Hot Tubs and Spas. LX wet ends are unique to each model of LX spa pump so if you have a LX TDA75 and TDA100 pump this wet end this is the only replacement for it, order with confidence.
- Wet End Type: Centre Discharge
- Wet End Horsepower: 1HP
- Plumbing connections: Outlet – 1.5 inches -Inlet – 1.5 inches
- Length: 156 mm Height: 194 mm Depth: 140mm
- Commonly used with: Wet End for LX TDA75 and TDA100
$90.13

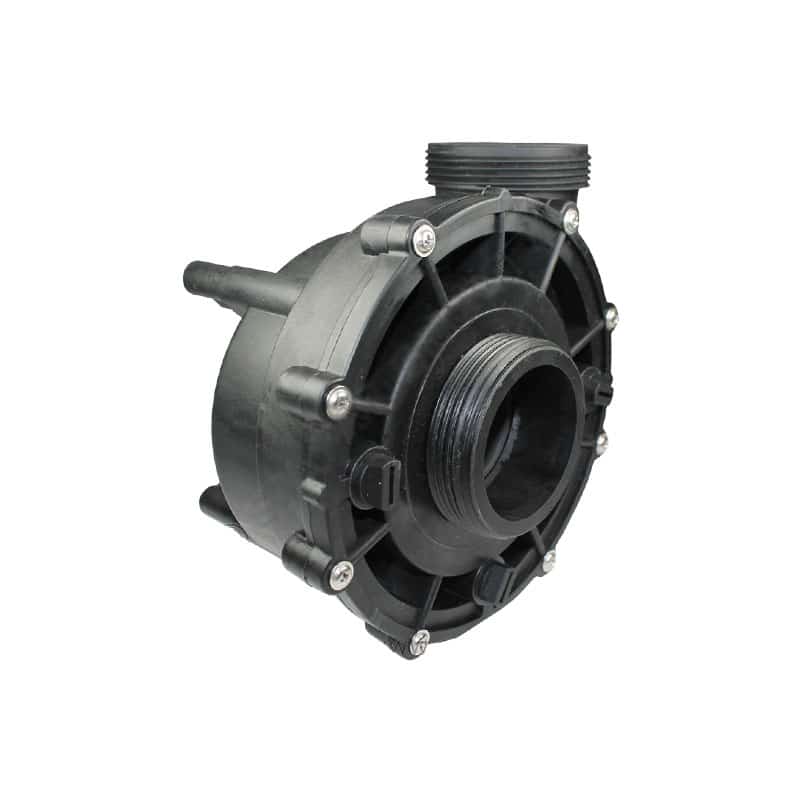

Wet End for WP400
Complete replacement Chinese WP400 circulation spa pump wet end with 4hp rated internal impeller and designed specifically for use with Hot Tubs and Spas. LX wet ends are unique to each model of LX spa pump so if you have a WP400 circulation pump this wet end this is the only replacement for it, order with confidence.
- Wet End Type: Side Discharge
- Wet End Horsepower: 4HP
- Plumbing connections: Outlet – 2 inches -Inlet – 2 inches
- Length: 202 mm Height: 195 mm Depth: 140 mm
- Commonly used with: LX wet ends to suit the LP/WP & TDA pump range.
