$117.96
Waterway Exec Euro 48 Wet End 2.5 x 2
Genuine direct replacement Waterway 48 Frame pump wet end with an internal 4hp rated impeller. This is the less common model that has a larger 2.5-inch inlet and 2-inch outlet plumbing union connections. 2-inch and 2.5- inch are just plumbing terms the diameters of the threaded connections are 78mm x 93mm.
This type of Waterway wet end is found on 1.5hp and 2hp Waterway Executive hot tub pumps here in the UK & Europe.
- Plumbing connections: 2.5 (intake) x 2 inch (outlet)
- Wet End Frame Size – 48
- Wet End Type – Side Discharge
- Wet End Horse Power – 4HP
- Length: 230 mm Height: 200mm Width: 145 mm (from face of intake to end of fixing spigot as pictured)
- Commonly used with: This type of Waterway wet end is found on 1.5hp and 2hp Waterway Executive hot tub pumps here in the UK & Europe.
$127.26
Waterway Exec Euro 48 Wet End (2×2)
Genuine direct replacement Waterway 48 Frame pump Hi-Flo wet end with 2-inch plumbing union connections on both the inlet and outlet (78mm thread OD). The Waterway Hi-Flo wet end is a powerful yet compact wet end with a large-sized 4hp rated impeller. This type of Waterway wet end is found on 1.5hp and 2hp Waterway Hi-Flo hot tub pumps and they are Waterway’s most common European 48 frame pump. This Hi-Flo wet end can be found on Beachcomber spas, Spaform Hot Tubs & others.
Can be used to replace the wet end on the old MagnaFlow HydroAir HA440 pump which is found on Spaform spas. You will, however, need to buy flat gaskets in the related products to seal the plumbing connections.
- Plumbing connections: 2 inch unions.
- Wet End Frame Size – 48
- Wet End Type – Side Discharge
- Wet End Horse Power – 4HP
- Length: 230 mm Height: 200mm Width: 145 mm (from face of intake to end of fixing spigot as pictured)
- Commonly used with:This Hi-Flo wet end can be found on Beachcomber spas, Spaform Hot Tubs & others.
$475.30
Waterway 1 Speed 2.0HP 56 Frame Pump 2.5 X 2
The larger 56 frame pumps use a more robust heavy duty motor and are favoured by spa manufacturers.
93mm Centre Suction x 79mm Side Discharge
- MPN: PF201N22X25
- Power reference: 2 HP 1 speed
- Volts: 230
- Hz: 50
- Amps Low / High Speed: 2 / 9.5
- RPM : 2800
- Wet end impellor HP: 4
- Capacitor : 30 uf
- Plumbing connections: 2.5 x 2 inch Waterway unions.
- Electrical connections: No wire with pump, you will need to use your existing wire. 2 x live, 1 x neutral and 1 x earth.
- Length: 430 mm Height: 240 mm Depth: 200 mm
- Commonly used with: Hot Tubs Direct, Knightswood Leisure, Touch Spas, Catalina, Clearwater Spas, Hydropool, Hotspring, Hotspot, Southwest Spas and many more
$475.30
Waterway 1 Speed 2.0HP 56 Frame Pump 2 X 2
The larger 56 frame pumps use a more robust heavy duty motor and are favoured by spa manufacturers.
93mm Centre Suction x 79mm Side Discharge
- MPN: PF201N22X
- Power reference: 2 HP 1 speed
- Volts: 230
- Hz: 50
- Amps Low / High Speed: 2 / 9.5
- RPM : 2800
- Wet end impellor HP: 4
- Capacitor : 30 uf
- Plumbing connections: 2 x 2 inch Waterway unions.
- Electrical connections: No wire with pump, you will need to use your existing wire. 2 x live, 1 x neutral and 1 x earth.
- Length: 430 mm Height: 240 mm Depth: 200 mm
- Commonly used with: Hot Tubs Direct, Knightswood Leisure, Touch Spas, Catalina, Clearwater Spas, Hydropool, Hotspring, Hotspot, Southwest Spas and many more
$471.60

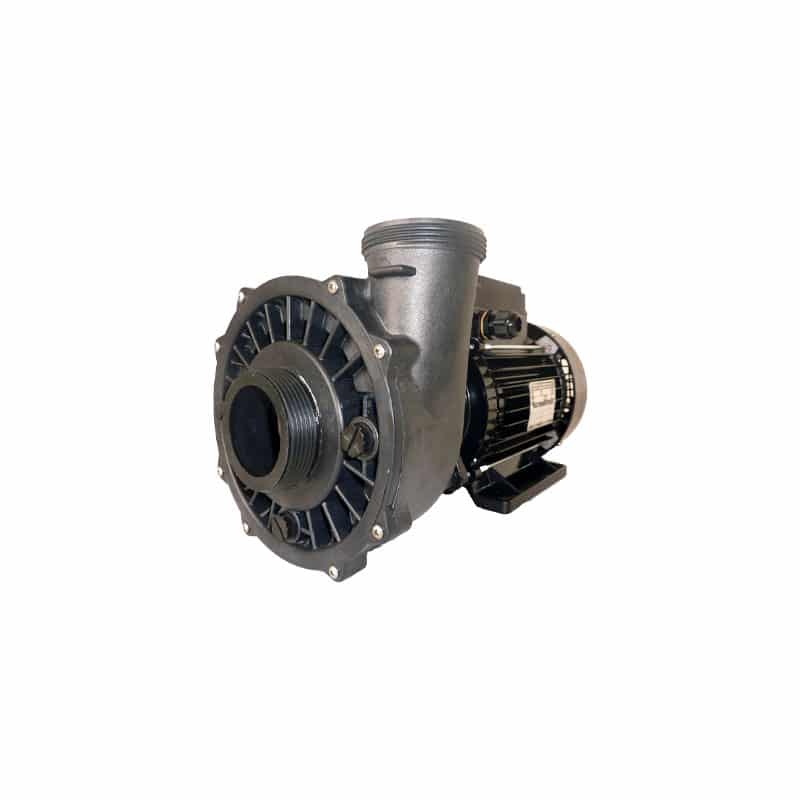

Waterway 1 Speed 3HP 56 Frame Pump 2 X 2
This pump can be found in many different Hot Tubs in various forms. It has 2-inch outlets and will work in place of either Waterway, Vico, Sta-Rite, GE, Emerson, A.O Smith, ITTor Aqua-flo and in most cases the unions will wind straight on. This pump is used for the boost jets operation.
- MPN:PF-30-1N22X
- Power reference: 3.0 HP 1 speed
- Volts: 230
- Hz: 50
- Motor HP Low / High: 3.21
- Amps Low / High Speed: 1.8/9
- RPM Low / High: 12.3/12.8
- Wet end impellor HP: 5
- Capacitor Low / High: 36 uf
- Plumbing connections: 2 x 2 inch Waterway unions.
- Electrical connections: No wire with pump, you will need to use your existing wire. 2 x live, 1 x neutral and 1 x earth.
- Length: 430 mm Height: 240 mm Depth: 200 mm
- Commonly used with: Hot Tubs Direct, Knightswood Leisure, Touch Spas, Catalina, Clearwater Spas, Hydropool, Hotspring, Hotspot, Southwest Spas and many more
$494.40
Waterway 1 Speed 3HP 56 Frame Pump 2.5 X 2
This pump can be found in many different Hot Tubs in various forms. It has 2.5-2 inch outlets and will work in place of either Waterway, Vico, Sta-Rite, GE, Emerson, A.O Smith, ITTor Aqua-flo and in most cases the unions will wind straight on. This pump is used for the boost jets operation.
- MPN:PF-30-1N22X25
- Power reference: 3.0 HP 1 speed
- Volts: 230
- Hz: 50
- Motor HP Low / High:3.21
- Amps Low / High Speed: 12.3 – 12.8
- RPM Low / High: 2840
- Wet end impellor HP: 5
- Capacitor Low / High: 36 uf
- Plumbing connections: 2.5 x 2 inch Waterway unions.
- Electrical connections: No wire with pump, you will need to use your existing wire. 2 x live, 1 x neutral and 1 x earth.
- Length: 430 mm Height: 240 mm Depth: 200 mm
- Commonly used with: Hot Tubs Direct, Knightswood Leisure, Touch Spas, Catalina, Clearwater Spas, Hydropool, Hotspring, Hotspot, Southwest Spas and many more
$415.99

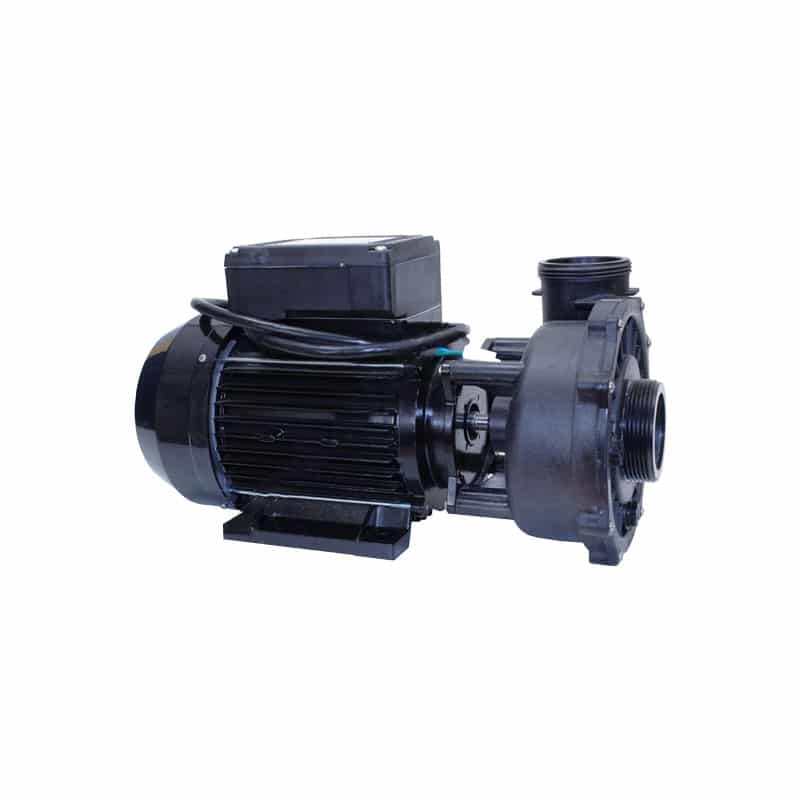

Waterway 2 Speed 2HP 56 Frame Pump 2.5″ X 2″
The larger 56 frame pumps use a more robust heavy duty motor and are favoured by spa manufacturers.
93mm Centre Suction x 79mm Side Discharge
- MPN: PF-PF-25-2N22X25
- Power reference: 2 HP 2 speed
- Volts: 230
- Hz: 50
- Motor HP Low / High:0.53/2.14
- Amps Low / High Speed: 1.8 / 9
- RPM Low / High: 1440/2850
- Wet end impellor HP: 4
- Capacitor Low / High: 16 uf / 30 uf
- Plumbing connections: 2 x 2.5 inch Waterway unions.
- Electrical connections: No wire with pump, you will need to use your existing wire. 2 x live, 1 x neutral and 1 x earth.
- Length: 430 mm Height: 240 mm Depth: 200 mm
- Commonly used with: Hot Tubs Direct, Knightswood Leisure, Touch Spas, Catalina, Clearwater Spas, Hydropool, Hotspring, Hotspot, Southwest Spas and many more
$493.37
Waterway 2 Speed 2.5HP 56 Frame Pump 2.5″ X 2″
This pump can be found in many different Hot Tubs in various forms. It has 2.5-2 inch outlets and will work in place of either Waterway, Vico, Sta-Rite, GE, Emerson, A.O Smith, ITTor Aqua-flo and in most cases the unions will wind straight on. This pump is used for the boost jets operation.
- MPN: PF-25N25-25
- Power reference: 2.5 HP 2 speed
- Volts: 230
- Hz: 50
- Motor HP Low / High: 0.53/2.14
- Amps Low / High Speed: 1.8/9
- RPM Low / High: 1450/2850
- Wet end impellor HP: 4
- Capacitor Low / High: 16 uf / 30 uf
- Plumbing connections: 2.5 x 2 inch Waterway unions.
- Electrical connections: No wire with pump, you will need to use your existing wire. 2 x live, 1 x neutral and 1 x earth.
- Length: 430 mm Height: 240 mm Depth: 200 mm
- Commonly used with: Hot Tubs Direct, Knightswood Leisure, Touch Spas, Catalina, Clearwater Spas, Hydropool, Hotspring, Hotspot, Southwest Spas and many more
$431.33
Waterway 2 Speed 2.5HP 56 Frame Pump 2 X 2
This pump can be found in many different Hot Tubs in various forms. It has 2-inch outlets and will work in place of either Waterway, Vico, Sta-Rite, GE, Emerson, A.O Smith, ITTor Aqua-flo and in most cases the unions will wind straight on. This pump is used for the boost jets operation.
- MPN: PF-252N22X
- Power reference: 2.5 HP 2 speed
- Volts: 230
- Hz: 50
- Motor HP Low / High: 0.74/3.54
- Amps Low / High Speed: 3-3.2/10.9-11.4
- RPM Low / High: 1440/2830
- Wet end impellor HP: 5
- Capacitor Low / High: 16 uf / 40 uf
- Plumbing connections: 2 x 2 inch Waterway unions.
- Electrical connections: No wire with pump, you will need to use your existing wire. 2 x live, 1 x neutral and 1 x earth.
- Length: 430 mm Height: 240 mm Depth: 200 mm
- Commonly used with: Hot Tubs Direct, Knightswood Leisure, Touch Spas, Catalina, Clearwater Spas, Hydropool, Hotspring, Hotspot, Southwest Spas and many more
$32.00
Waterway Executive 2HP Impeller for 56 Frame
Genuine replacement 2hp impeller 310-4210 for Waterway Executive pump wet ends designed specifically for use with Hot Tubs & Spas. These 2hp impellers will fit any Waterway 48 frame or 56 frame Executive spa pump wet ends but you should fit the same horsepower equivalent. The horsepower rating is usually stamped into the centre of each Waterway impeller so check there to match up your replacement.
Vein Gap Distance – To aid in matching up the correct impeller HP measure the vein gap distance, this is the distance between the front and rear plates of the impeller. Compare with the specifications of this Waterway impeller below.
- Impeller HP -2hp
- Vein Gap Distance – 6mm
- Diameter – 116mm
- Length – 80mm
$32.00
Waterway Executive 3hp Impeller
Genuine replacement 3hp impeller 310-4200 for Waterway Executive pump wet ends designed specifically for use with Hot Tubs & Spas. These 3hp impellers will fit any Waterway 48 frame or 56 frame Executive spa pump wet ends but you should fit the same horsepower equivalent. The horsepower rating is usually stamped into the centre of each Waterway impeller so check there to match up your replacement.
Vein Gap Distance – To aid in matching up the correct impeller HP measure the vein gap distance, this is the distance between the front and rear plates of the impeller. Compare with the specifications of this Waterway impeller below.
- Impeller HP -3hp
- Vein Gap Distance – 10mm
- Diameter – 116mm
- Length – 82mm
$32.00
Waterway Executive 4HP Impeller for 56 Frame
Genuine replacement 4hp impeller 310-4190 for Waterway Executive pump wet ends designed specifically for use with Hot Tubs & Spas. These 4hp impellers will fit any Waterway 48 frame or 56 frame Executive spa pump wet ends but you should fit the same horsepower equivalent. The horsepower rating is usually stamped into the centre of each Waterway impeller so check there to match up your replacement.
- Impeller HP -4hp
- Vein Gap Distance – 13mm
- Diameter – 116mm
- Length – 88mm
$503.57
Waterway 2 Speed 2.0HP 56 Frame Pump 2 X 2
This pump can be found in many different Hot Tubs in various forms. It has 2-inch outlets and will work in place of either Waterway, Vico, Sta-Rite, GE, Emerson, A.O Smith, ITTor Aqua-flo and in most cases the unions will wind straight on. This pump is used for the boost jets operation.
- MPN: PF-20-2N22X
- Power reference: 2.0 HP 2 speed
- Volts: 230
- Hz: 50
- Motor HP Low / High: 0.53/2.14
- Amps Low / High Speed: 1.8/9
- RPM Low / High: 1450/2850
- Wet end impellor HP: 4
- Capacitor Low / High: 16 uf / 30 uf
- Plumbing connections: 2 x 2 inch Waterway unions.
- Electrical connections: No wire with pump, you will need to use your existing wire. 2 x live, 1 x neutral and 1 x earth.
- Length: 430 mm Height: 240 mm Depth: 200 mm
- Commonly used with: Hot Tubs Direct, Knightswood Leisure, Touch Spas, Catalina, Clearwater Spas, Hydropool, Hotspring, Hotspot, Southwest Spas and many more
$32.00
Waterway Executive 5HP Impeller for 56 Frame
Genuine replacement 5hp impeller 310-4180 for Waterway Executive pump wet ends designed specifically for use with Hot Tubs & Spas. These 5hp impellers will fit any Waterway 48 frame or 56 frame Executive spa pump wet ends but you should fit the same horsepower equivalent. The horsepower rating is usually stamped into the centre of each Waterway impeller so check there to match up your replacement.
- Impeller HP -5hp
- Vein Gap Distance – 16mm
- Diameter – 116mm
- Length – 88mm
$32.00
Waterway Hi-Flo 3 HP Pump Impeller for 48 Frame
Genuine replacement 3hp impeller 310-4020 for Waterway Hi-flo pump wet ends designed specifically for use with Hot Tubs & Spas. These 3hp impellers will fit any Waterway 48 frame or 56 frame Hi-flo spa pump wet ends but you should fit the same horsepower equivalent. The horsepower rating is usually stamped into the centre of each Waterway impeller so check there to match up your replacement.
- Impeller HP – 3hp
- Vein Gap Distance – 12mm
- Diameter – 93mm
- Length – 80mm
$464.33
Waterway Viper 2 Speed 5.0HP 56 Frame Pump
Powerful and efficient, the Waterway Viper 2 Speed 5.0HP 56 Frame Pump delivers outstanding water flow for spas and hot tubs. Designed for durability and quiet operation.
- Power reference: 5 HP 2 speed
- Volts: 230
- Hz: 50
- Motor HP Low / High: 0.53/2.01
- Amps Low / High Speed: 12.5
- Wet end impellor HP: 5
- Plumbing connections: 2.5 x 2.5 inch Waterway unions (not included)
- Electrical connections: No wire with pump, you will need to use your existing wire
- Length: 430 mm Height: 240 mm Depth: 200 mm
- Commonly used with: Most American and Canadian built Swim Spas.
