$178.58
LX LP300 Single Speed Pump 3.0HP
The LX LP300 is a single-speed, 3.0 HP pump designed for hot tubs and spas, particularly those manufactured in China.
- Volts: 230
- Hz: 50
- Motor HP Low / High: 30
- Wet end impeller HP: 3.0
- Current Draw: 10 A
- RPM Low/High: 2900
- Capacitor: 50 µF
- Plumbing connections: 2-inch suction and discharge ports (78 mm outer thread diameter)
- Length: 400 mm Height: 205 mm Depth: 205 mm
- Commonly used with: Suitable for various spa brands, including AMC Winer, Cascade, MAAX, Monalisa, and Trinity
$15.59

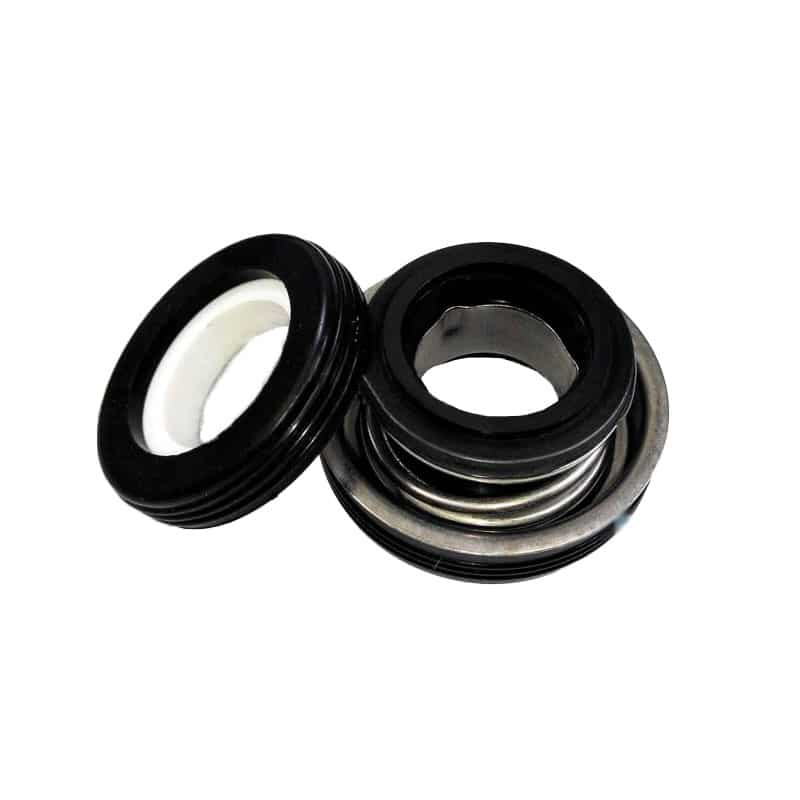

LX Pump Seal Kit (multi pump 2008 onwards)
Water pump shaft seal kit suitable for pups after 2008 including:
- LP150, LP200, LP250, LP300
- LX – JA50, JA75, JA100, JA120, JA150, JA200
- TDA50, TDA75, TDA150, TDA200
- WTC50M
- EA320, EA350, EA390, EA450,
- WP200-II, WP250-II, WP300-II
$81.67
LX T Shape Heater H30-R3 3kW
- Volts: 230 Hz: 50 KW: 3.0 Amps: 13.6
- Length: 340mm
- Plumbing Connection: 1.5″
- Element Material: Incoloy
- Compatible with: Chinese spas where you may require a plumbing change or as a remote heater on a project
$79.37
LX T Shape Heater H30-R3 3kW No Sensor Cable
- Volts: 230 Hz: 50 KW: 3.0 Amps: 13.6
- Length: 340mm
- Plumbing Connection: 1.5″
- Element Material: Incoloy
- Compatible with: Chinese spas where you may require a plumbing change or as a remote heater on a project
$122.05
LX TDA100 Circulation Pump with Optional Air Switch
The LX TDA100 is a single-speed, 1.0 HP circulation pump designed for hot tubs and whirlpool baths, featuring an optional air switch for manual operation.
- Volts: 230
- HP: 1.0
- Hz: 50
- RPM Low/High: 2,900
- Plumbing connections: 1.5-inch
- Length: 350 mm Height: 190 mm Depth: 140 mm
- Commonly used with: Suitable for various spa brands, including Chinese-manufactured models
$166.20
LX TDA150 Pump Single Speed 1.5HP
The LX TDA150 has a low positioned centre suction port enables the pump to self-drain once the motor is shut off.
- Volts: 230
- Hz: 50
- Motor HP Low / High: 1.5
- Amp Draw: 5.8
- RPM Low/High: 2900
- Capacitor: 20 µF
- Plumbing connections: 1.5 inch
- Electrical connections: 3 Core AMP
- Length: 400 mm Height: 205 mm Depth: 175 mm
- Commonly used with: MAAX, Cascade, Trinity, Monalisa and AMC Winer along with many other newer spa brands appearing in the European market.
$189.04
LX TDA200 Pump Single Speed 2.0HP
The LX TDA200 has a low positioned centre suction port enables the pump to self-drain once the motor is shut off.
- Volts: 230
- Hz: 50
- Motor HP Low / High: 2.0
- Amps Low/High Speed: 7
- RPM Low/High: 2900
- Capacitor: 25 µF
- Plumbing connections: 1.5 inch
- Electrical connections: Comes with plain cable attached
- Length: 400 mm Height: 205 mm Depth: 175 mm
- Commonly used with: Chinese spas and brands like AMC Winer, Trinity E-Zone, Monalisa, and Cascade Spas.
$115.91
LX TDA75 Circulation Pump 0.75HP
The LX TDA75 is a single-speed, 0.75 HP circulation pump designed for hot tubs and whirlpool baths.
- Volts: 230
- HP: 0.75
- Hz: 50
- RPM Low/High:2,700
- Plumbing connections: 1.5-inch
- Length: 350 mm Height: 205 mm Depth: 160 mm
- Commonly used with: Commonly used in Chinese spas, including AMC Winer, Cascade, MAAX, Monalisa, Trinity, and Spa Serve
$93.49
LX WE10 Pump Single Speed 180W
The LX WE10 is a 180w MPN – WE10 designed as a direct replacement for the Laing E10 model. This single-speed circulation pump is engineered for continuous use in hot tubs and spas.
- Volts: 230
- Hz: 50
- Amps:2.0 A
- RPM Low/High: 2900
- Capacitor Size(s): 7 µF
- Plumbing connections:3/4 inch. Interchangeable with other brands.
- Electrical connections: Comes with plain 3 core cable attached. 1 x Phase, Neutral + Earth.
- Length: 243 mm Height: 152 mm Depth: 146 mm
- Commonly used with: Hot spring, Sundance or Canadian Spa pumps with a Similar low flow pump
$85.92
LX WE14 Fixed Speed Pump
The LX WE14 Circulation Pump MPN – WE14 is a fantastic cheaper alternative to the popular Laing E14 pump, as it features the same inlet and outlet size.
- Volts: 230
- Hz: 50
- RPM Low/High: 2900
- Motor Power: 0.18KW
- Amps: 0.8
- Capacitor: 7 uf
- Plumbing connections: 1.5 inch screwed unions
- Length: 215 mm Height: 160 mm Depth: 150 mm
- Commonly used with: Works with various spa brands, including Master Spas, LA Spas, Clearwater Spas, Hydropool Hot Tubs, and Wellis Spas
$199.40
LX WP200-II Pump Dual Speed 2HP
The LX WP200-II is a dual-speed 2.0HP pump, ideal for water circulation and jet operation in various hot tub models.
- Power reference: 2 HP 2 speed
- Motor HP Low / High : 0.26HP/1.25HP
- Amps Low / High Speed: 2.4/ 7
- RPM Low / High: 1450 / 2900
- Capacitor: 30 µF0
- Plumbing connections: 2 inches (outside diameter of male threaded wet end connection is 78mm approx.) Interchangeable with other brands.
- Electrical connections: Comes with plain 4 core cable attached. 2 x Phase, 1 x Common Neutral + Earth.
- Length: 435 mm Height: 235 mm Depth: 200 mm
$210.60
LX WP250-II Pump Dual Speed 2.5HP
- Power reference: 2.5 HP 2 speed
- Motor HP Low / High : 0.54HP/2.48HP
- Amps Low / High Speed: 2.8 / 8.6
- RPM Low / High: 1450 / 2900
- Capacitor:40 µF
- Plumbing connections: 2 inches (outside diameter of male threaded wet end connection is 78mm approx.) Interchangeable with other brands.
- Electrical connections: Comes with plain 4 core cable attached.
- Length: 435 mm Height: 235 mm Depth: 200 mm
$237.86
LX WP300-II Pump Dual Speed 3.0HP
The LX WP300-II is a high-performance, dual-speed 3.0 HP pump designed for efficient water circulation and jet operation in hot tubs and spas
- Power reference: 3 HP 2 speed
- Motor HP Low / High : 3.2HP/10HP
- Amps Low / High Speed: 2.8 / 8.6
- RPM Low / High: 1450 / 2900
- Capacitor:40 µF
- Plumbing connections: 2 inches (outside diameter of male threaded wet end connection is 78mm approx.) Interchangeable with other brands.
- Electrical connections: Comes with plain 4 core cable attached.
- Length: 435 mm Height: 235 mm Depth: 200 mm
$395.00
LX WP500-II Pump Dual Speed 5.0HP
The LX WP500-II is a powerful dual-speed 5.0 HP pump, designed for high-demand water circulation and jet operation.
- Power reference: 5.0HP 2 speed
- Motor HP Low / High : 1.0 HP/5.0 HP
- Amp Draw:4.5 / 15.0 A
- RPM Low / High: 1450 / 2900
- Capacitor: 50 µF
- Plumbing connections: 2.5″ x 2.5″
- Electrical connections: Comes with plain 4 core cable attached.
- Length: 458 mm Height: 261 mm Depth: 209 mm
$139.99
High-performance LX WTC100 1HP circulation pump designed for larger hot tubs and spa systems requiring strong, reliable water flow. Ideal replacement for worn or underperforming pumps.
$100.30
