$822.98

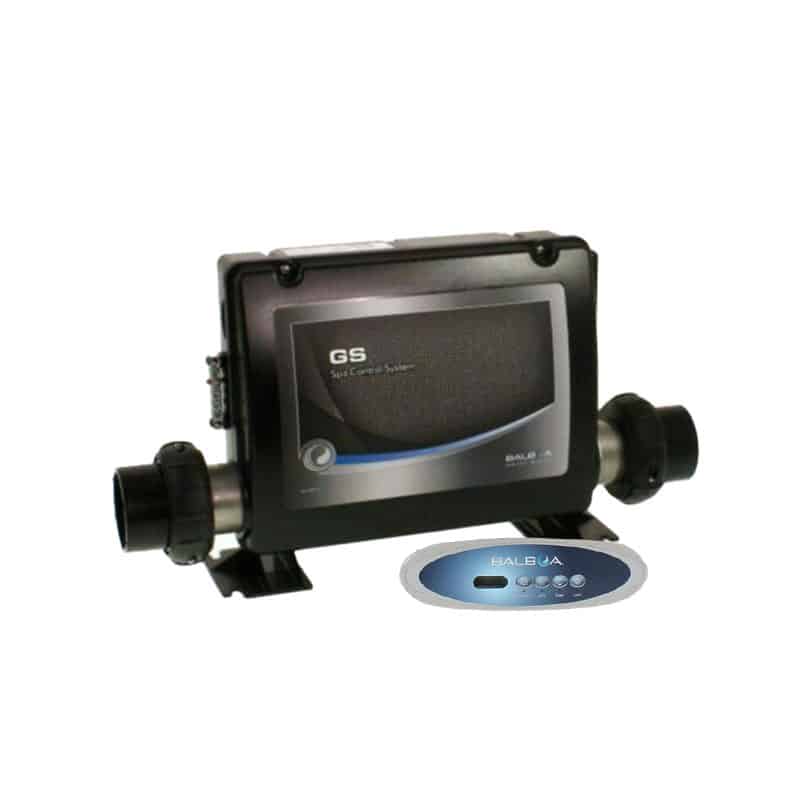

Pack 3.1 Balboa GS501Z 3.0kW + MVP260 Touch Pad
This Balboa GS501Z spa control box bundle benefits from having a 3kw heater and a VL260 which has a nice large facia but only requires a small hole in the spa shell so great for covering holes left behind from other system panels. The GS501Z control box will operate a two-pump hot tub system and is also ideal for upgrading a Chinese spa control system or updating an old unserviceable one that parts are unable to obtain. Due to this system having a 3kw heater, you will need to have a 16 amp minimum supply to it from your home consumer unit so you may need an electrician to wire this for you if you don’t already have this installed.
- Volts: 230vac
- Hz: 50
- Watts: Amps: 16A OR 32A
- Connections: 2-inch socket heater union sleeves. Amp cables plug onto the PCB to operate the components.
- Pump 1: Single or dual speed pump + circulation pump if required
- Heater: 1 x 3kW Heater
- Ozone: x 1
- Light: 1 x 12 volt
- Length: 500 mm (inc heater) 320 mm (box only) Width: 120 mm Height: 270mm Topside: 178 mm x 54 mm
$986.47

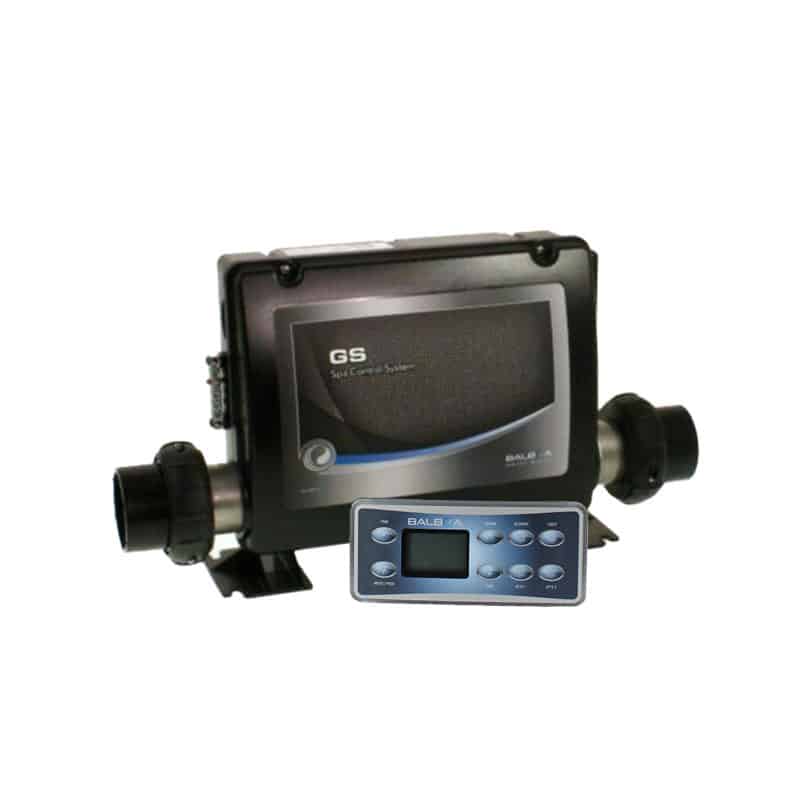

Pack 4.4 Balboa GS520DZ + TS-VL801 Touch Pad
Our Balboa GS520DZ spa control box bundle benefits from having a 3kw heater and a high-quality VL801D deluxe touch panel which is ideal for fitting over spa shell holes from other removed panels due to its size. The GS520DZ control box is quite unique and will operate a 2 x two-speed jet pumps and an air blower hot tub system but can also operate a three-pump system if no air blower is used. This Balboa bundle can also be used for upgrading from a Chinese spa control system or updating an old unserviceable one where parts are unobtainable.
Due to this system having a 3kw heater and being able to run this many electrical components, you will need to have a 32 amp supply to it from your home consumer unit so you may need an electrician to wire this for you if you don’t already have this installed.
- Volts: 230vac
- Hz: 50
- Watts: Amps: 16A OR 32A
- Connections: 2″ Unions
- Pump 1: Single or dual speed pump + circulation pump if required
- Pump 2:Single or dual speed pump
- Heater: 1 x 3kW Heater
- Ozone: x 1
- Light: 1 x 12 volt
- Length: 500 mm (inc heater) 320 mm (box only) Width: 120 mm Height: 270mm Topside: 187 mm x 83 mm
$986.47

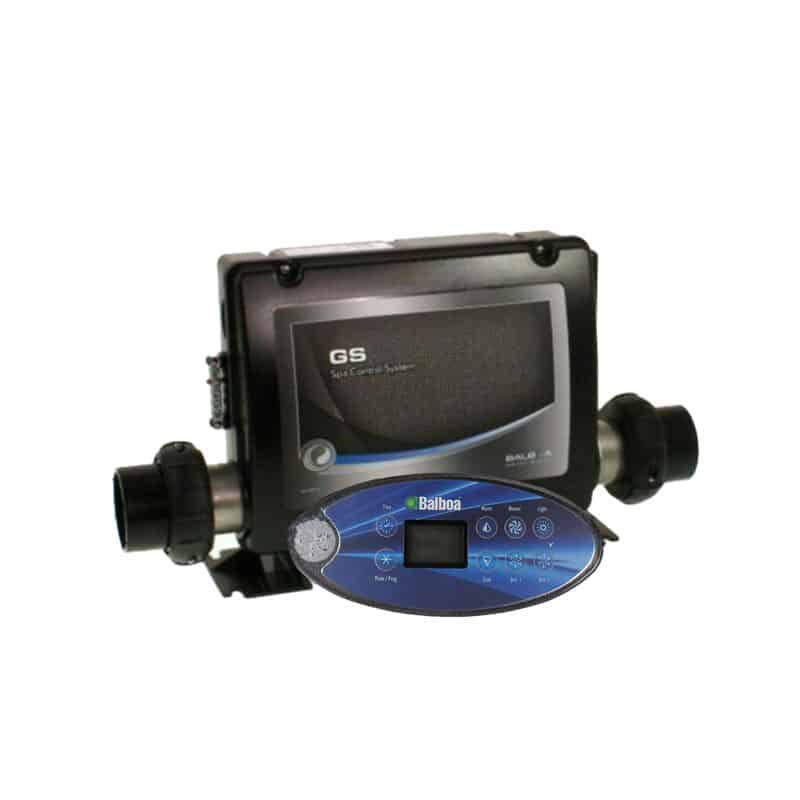

Pack 5.2 Balboa GS523DZ + TS-VL802 Touch Pad
Our Balboa GS523DZ spa control box bundle benefits from having a 3kw heater and a large oval high-quality VL802D deluxe touch panel which is ideal for fitting over spa shell holes from other removed panels due to its size. The GS523DZ control box itself is a highly capable box and a preferred favorite of ours, it will operate a 3 pump and an air blower hot tub system but can also operate a four-pump system if no air blower is used. This Balboa bundle can also be used for upgrading from a Chinese spa control system or updating an old unserviceable one where parts are unobtainable.
We have been using this system bundle for years to replace the KL8-3 Chinese E-think spa control system, the GS523DZ box will operate all the pumps and the Vl802D panel just covers the hole left behind from the KL8-3 panel, also fitting within the recesses of spa shells.
Due to this system having a 3kw heater and being able to run this many electrical components, you will need to have a 32 amp supply to it from your home consumer unit so you may need an electrician to wire this for you if you don’t already have this installed.
- Volts: 230vac
- Hz: 50
- Watts: Amps: 16A OR 32A
- Connections: 2″ Unions
- Pump 1: Single or dual speed pump + circulation pump if required
- Pump 2:Single speed
- Pump 3: Single speed
- Heater: 1 x 3kW Heater
- Ozone: x 1
- Light: 1 x 12 volt
- Length: 500 mm (inc heater) 320 mm (box only) Width: 120 mm Height: 270mm Topside: 187 mm x 83 mm
$292.21
Perseus 460 Whirlpool Pump
Complete replacement Hydroair Perseus HA460 pump designed specifically for use with spas, hot tubs and whirlpool baths. This compact high-performance pump from Hydroair delivers a high flow output for its size, silent running and comes complete with a built-in pneumatic air switch for use with whirlpool bath applications.
- Power reference: 1.6 HP
- Volts: 230
- Hz: 50
- Motor HP Low / High: 1.61
- Wet End Impellor HP: 1.5
- RPM Low / High: 2800
- Amps Low / High Speed: 6.2
- Plumbing connections: 1.5 inch
- Electrical connections: Comes with plain cable attached
- Length: 335 mm Height: 210 mm Depth: 175 mm
- Commonly used with:Larger whirlpool bath settings and also some smaller Hot Tubs or Spas.
$14.54
This is the Tropical Spas & Pools Balboa 4 button overlay
- Buttons: Jets, Light, Cool & WARM
- Length: 150 mm Height: 47mm
- Manufacturers part number: 11885
$150.00
VL401 Touch Panel and Overlay (jets)
- 12 Volts
- Jets, Lights, Cool and Warm button configuration
- Telephone cord style RJ45 connection
- LCD, basic 3 digit style screen
- Length: 160 mm Height: 57mm
- Overlay included
$95.62
Wet End 2.0HP Vico Ultrajet (Ultima)
Complete replacement Vico Ultrajet wet end with 2hp rated internal impeller and designed specifically for use with Hot Tubs and Spas. Vico is a pump manufacturing sub-brand of Balboa Water Group, Vico manufactured the now discontinued Ultrajet spa pump for Balboa many years ago. These distinctive shaped Ultrajet wet ends are the genuine replacement part from Vico and are still obtainable to us from Balboa.
- Plumbing connections: 2 x 2 inch unions.
- Wet End Frame Size – 48
- Wet End Type – Side Discharge
- Wet End Horsepower: 2HP
- Length: 190 mm Height: 160 mm Width: 140mm
- Commonly used with: This exact wet end can be found on very old spas by brands such as Canadian Spa, Hydropool Hot Tubs, Can Spa, Coast Mountain and others.
$86.14
Wet End 3.0HP Vico Ultrajet (Ultima)
Complete replacement Vico Ultrajet wet end with 3hp rated internal impeller and designed specifically for use with Hot Tubs and Spas. Vico is a pump manufacturing sub-brand of Balboa Water Group, Vico manufactured the now discontinued Ultrajet spa pump for Balboa many years ago. These distinctive shaped Ultrajet wet ends are the genuine replacement part from Vico and are still obtainable to us from Balboa.
- Plumbing connections: 2 x 2 inch unions.
- Wet End Frame Size – 48
- Wet End Type – Side Discharge
- Wet End Horsepower: 3HP
- Length: 190 mm Height: 160 mm Width: 140mm
- Commonly used with: This exact wet end can be found on very old spas by brands such as Canadian Spa, Hydropool Hot Tubs, Can Spa, Coast Mountain and others.
$87.78
Wet End for 1.5HP Sta-Rite (HA440NG)
Complete replacement Balboa HA440NG spa pump wet end with 1.5hp rated internal impeller and designed specifically for use with Hot Tubs and Spas. The HA440NG wet end is manufactured by Sta-Rite for the Balboa Water Group.
This wet end must be bolted onto a Balboa motor only, it requires a Balboa motor as they have a long motor shaft length for the mechanical seal to work correctly.
- Plumbing connections: 2 inches
- Wet End Horsepower: 1.5HP
- Length: 195 mm Height: 150 mm Width: 165mm
- Commonly used with: This wet end is used on our HA440NG pumps but is also the same wet end used when the pump was called Sta-Rite and often labelled up as 1.0HP found on Master Spas in the past.
$96.20
Wet End for 2HP Durajet (Cascade)
Complete replacement Sta-Rite (Balboa) Durajet spa pump wet end with 2hp rated internal impeller and designed specifically for use with Hot Tubs and Spas. This wet end is very distinctive and can be easily recognised by having fins in the front volute face. The Sta-Rite Durajet pump made by Pentair was discontinued some time ago now but these genuine original wet ends along with the complete pumps have now been re-manufactured by Balboa.
- Plumbing connections: 2 x 2 inch unions.
- Wet End Frame Size – 48 or 56
- Wet End Type – Side Discharge
- Wet End Horsepower: 2HP
- Length: 190 mm Height: 188 mm Width: 130mm
- Commonly used with:This exact wet end can be found on USA spa brands such as Dimension One Spas, Master Spas, HotSprings & others.
