$210.00
Balboa VL600S topside hot tub control panel with Jets 1, Jets 2, Light, Warm, Mode, Cool functions.
- Manufacturers part number: 54548
- Length: 178mm Height: 87mm
- Commonly used with: GS501SZ, GS510S, GS510SZ, GS511SZ. Master Spas amongst others.Hot Tubs: Passion Spas, Master Spa Legacy Whirlpool Series
We are Proud to be 1 of the UK’s official distributors of Balboa hot tub parts.
$210.00
Balboa VL600S topside hot tub control panel with Jets, Blower, Light, Warm, Mode and Cool functions.
- Manufacturers part number: 54547
- Length: 178mm Height: 87mm
- Commonly used with:GS501SZ, GS510S, GS510SZ, GS511SZ. Master Spas amongst others.
- Overlay included
We are Proud to be 1 of the UK’s official distributors of Balboa hot tub parts.
$97.88
Add convenient secondary control of Jets 1, Blower and Light with this genuine Balboa VX40S auxiliary panel — perfect for larger spas or zoned operation.
-
3-button layout: Jets 1, Blower, Light — giving targeted control of the spa’s key features.
-
Designed as an auxiliary/remote panel: ideal when you need an additional control point away from the main topside control.
-
Low-voltage operation (12 V) for safe spa integration.
-
Compatible with Balboa GS(SZ) series systems (verify your spa pack for compatibility).
-
Convenient dimensions for mounting: Face length approx 190 mm, height 58.4 mm; cut-out approx 139 mm × 38 mm.
-
Rear cable length (approx 5.5 m) enables flexible installation location
$76.79
Balboa Wet End 2.0HP Vico Ultimax Niagara
This wet end is from Balboa Water Group. The item is formerly known as a Vico wet end now known as a Ultimax / Niagara wet end and includes Internally factory fitted seal, the housing, the face plate, the face plate o-ring, and the impeller.
- Plumbing connections: 2 inches
- Wet End Horsepower: 2HP
- Length: 195 mm Height: 150 mm Width: 168mm
- Commonly used with: This unit is very similar in appearance to the Vico Ultima / Ultrajet wet end used on Hydropool and Canadian Spas but the outlets and overall size of the wet end are slightly different. Must on be fitted to Vico Ultimax pumps or Balboa Niagara pumps. This unit is to fit on frame size 90 which is a similar size to the industry standard 56 frame sizing.
$76.79
Balboa Wet End 3.0HP Vico Ultimax Niagara
This wet end is from Balboa Water Group. The item is formerly known as a Vico wet end now known as a Ultimax / Niagara wet end and includes Internally factory fitted seal, the housing, the face plate, the face plate o-ring, and the impeller.
- Plumbing connections: 2 inches
- Wet End Horsepower: 3HP
- Length: 195 mm Height: 150 mm Width: 168mm
- Commonly used with: This unit is very similar in appearance to the Vico Ultima / Ultrajet wet end used on Hydropool and Canadian Spas but the outlets and overall size of the wet end are slightly different. Must on be fitted to Vico Ultimax pumps or Balboa Niagara pumps. This unit is to fit on frame size 90 which is a similar size to the industry standard 56 frame sizing.
$404.50
Balboa/Pentair Durajet 2.0 HP 1 SPD Pump
The Balboa durajet 2.0 HP 1 speed pump is manufactured by Balboa with the help of a Pentair wet end. This pump can be found in many hot tubs including Hotsprings.
- Power reference: 2.0 HP 1 speed
- Volts:230
- Hz:50
- RPM Low / High: 2800
- Wet End Impellor HP: 2.0
- Amps Low / High Speed: 8.7
- Plumbing connections: 2 inch unions
- Electrical connections: 1 x 3 core cable (not supplied)
- Length: 380 mm Height: 220.72 mm Depth: 165.10 mm
- Commonly used with: This pump can be found in many hot tubs including Hotsprings
$629.21
Balboa/Pentair Durajet 2.0 HP 2 SPD Pump
Genuine modern replacement 2hp 2 speed Balboa Durajet pump designed specifically for use with hot tubs and spas. This Durajet pump also known as the Cascades is manufactured by Balboa. Balboa has many pump divisions and owns Pentair who manufacture the Sta-Rite range of pumps.
- Power reference: 2.0 HP 2 speed
- Volts:230
- Hz:50
- RPM Low / High: 1400/2800
- Wet End Impellor HP: 2.0
- Amps Low / High Speed: 1.9/9.0
- Plumbing connections: 2-inch unions
- Electrical connections: 1 x 4 core cable (not supplied)
- Length: 437.64 mm Height: 220.72 mm Depth: 165.10 mm
- Commonly used with: Dimension One Spas, Hotsprings & Master Spas.
$662.54
Meet the Balboa GS501SZ
The Global Series (GS) family of hot tub control systems were designed using Balboa’s patented M7® temperature and water flow sensing technology and a new universal control platform. These features increase the reliability, ease of installation and serviceability of the control.
- Manufacturers part number: 54511-01
- Heater: 3kW
- Pump 1: 2 speed (1 speed with circ pump
- Pump 2: 1 speed (if no blower)
- Radio, TV/AV: Point available
- Length: 500 mm (inc heater) 330 mm (box casing only) Width: 120 mm Height: 300mm
- Commonly used with: Systems fitted with topside controls from the serial standard VL range such as the VL600S, VL700S and VL701S, also suitable for upgrades. Northwind Hot Tubs, Leisure Bay and more. Ideal replacement for some versions of the Master Spa MS1500E on Down East Spas with the following configuration Jets 1, Jets 2, Light, Warm, Cool, Mode, Jets 3. In some cases with the other version of this topside which has the temperature controls at the far right of the panel, you will need to replace the topside sticker also.
We are Proud to be 1 of the UK’s official distributors of Balboa hot tub parts.
$643.54
This next generation Balboa BP6013G1 spa control pack comes WiFi ready and connects to the Balboa Worldwide app using the Balboa Wifi Receiver Module.
- Manufacturers part number:56611-06
- Heater: x 1 (3kW)
- Radio, TV/AV: Point available
- Feature: Designed for use with WiFi receiver for iPhone operation.
- Length: 500 mm (inc heater) 330 mm (box casing only) Width: 120 mm Height: 300mm
- Commonly used with: Balboa TP Series Topside panels such as TP400, TP600, TP800, TP900
We are Proud to be 1 of the UK’s official distributors of Balboa hot tub parts.
$758.47
This next generation Balboa BP6013G2 spa control pack comes WiFi ready and connects to the Balboa Worldwide app using the Balboa Wifi Receiver Module.
- Manufacturers part number: 59126
- Heater: x 1 (3kW)
- Radio, TV/AV: Point available
- Feature: Designed for use with WiFi receiver for iPhone operation.
- Length: 500 mm (inc heater) 330 mm (box casing only) Width: 120 mm Height: 300mm
- Commonly used with: Balboa TP Series Topside panels such as TP400, TP600, TP800, TP900
We are Proud to be 1 of the UK’s official distributors of Balboa hot tub parts.
$900.00
Discontinued by Balboa. Please use Babloa BP8 Complete Pack
This next generation Balboa BP6013G2 spa control pack comes WiFi ready and connects to the Balboa Worldwide app using the Balboa Wifi Receiver Module.
- Manufacturers part number: 56611-06
- Heater: x 1 (3kW)
- Radio, TV/AV: Point available
- Feature: Designed for use with WiFi receiver for iPhone operation.
- Length: 500 mm (inc heater) 330 mm (box casing only) Width: 120 mm Height: 300mm
- Commonly used with: Balboa TP Series Topside panels such as TP400, TP600, TP800, TP900
We are Proud to be 1 of the UK’s official distributors of Balboa hot tub parts.
$726.04
Meet the Balboa GS523DZ
The Global Series (GS) family of hot tub control systems were designed using Balboa’s patented M7® temperature and water flow sensing technology and a new universal control platform. These features increase the reliability, ease of installation and serviceability of the control.
- Manufacturers part number: 54763-02
- Heater: 3kW
- Pump 1: Single or dual speed pump + circulation pump if required.
- Pump 2: 1 speed
- Pump 3: Single Speed
- Radio, TV/AV: Point available
- Length: 500 mm (inc heater) 330 mm (box casing only) Width: 120 mm Height: 300mm
- Commonly used with:Systems fitted with topside controls from the deluxe VL range such as the VL801D, also suitable for upgrades
We are Proud to be 1 of the UK’s official distributors of Balboa hot tub parts.
$840.00
Meet the Balboa GL2001 MK3
The Global Elite Series (GL) series of hot tub control systems are designed using Balboa’s patented and famous M7® temperature and water sensing technology and new universal control platform. These features increase the flexibility, reliability, ease of installation and serviceability.
- Manufacturers part number:55216-03
- Heater: 3kW
- Pump 1: Single or dual speed pump + circulation pump if required.
- Pump 2: Single or dual speed
- Radio, TV/AV: Point available
- Length: 500 mm (inc heater) 330 mm (box casing only) Width: 120 mm Height: 300mm
- Commonly used with:Systems fitted with topside controls from the advanced ML range such as the ML700 and ML900, also suitable for upgrades.Hot Tubs: This box is used a lot with Master Spas and Spaform Prestige Series to name a couple. Ideal replacement for Master Spa MS5000E 55062 or 55063.
We are Proud to be 1 of the UK’s official distributors of Balboa hot tub parts.
$1,139.82
Meet the Balboa GL8000 Mach 3
The Global Elite Series (GL) series of hot tub control systems are designed using Balboa’s patented and famous M7® temperature and water sensing technology and new universal control platform. These features increase the flexibility, reliability, ease of installation and serviceability.
- Manufacturers part number:56168-02
- Heater: 3kW
- Pump 1: Single or dual speed pump + circulation pump if required.
- Pump 2: Single or dual speed
- Pump 3: Optional
- Pump 4: Optional if blower not used
- Air Blower: Optional if pump 4 not used
- Radio, TV/AV: Point available
- Length: 500 mm (inc heater) 330 mm (box casing only) Width: 110 mm Height: 358mm
- Commonly used with:Systems fitted with topside controls from the advanced ML range such as the ML700 and ML900, also suitable for upgrades.Hot Tubs: Aegean, Masterspa, Catalina, Spaform, Leisurerite, QCA and much more.
We are Proud to be 1 of the UK’s official distributors of Balboa hot tub parts.
$266.70
Laing 2.9kW Half Loop Style Heater
- KW: 2.9
- Length: 675 mm
- Height: 144 mm
- Element Material: Titanium
- Flow Detection: External flow switch
- Sensors Type: Built-in Hi-Limit sensor
- Compatible with: Sundance & Jacuzzi Spas, Hotspring/Caldera Spas & Southwest Spas.
$510.72

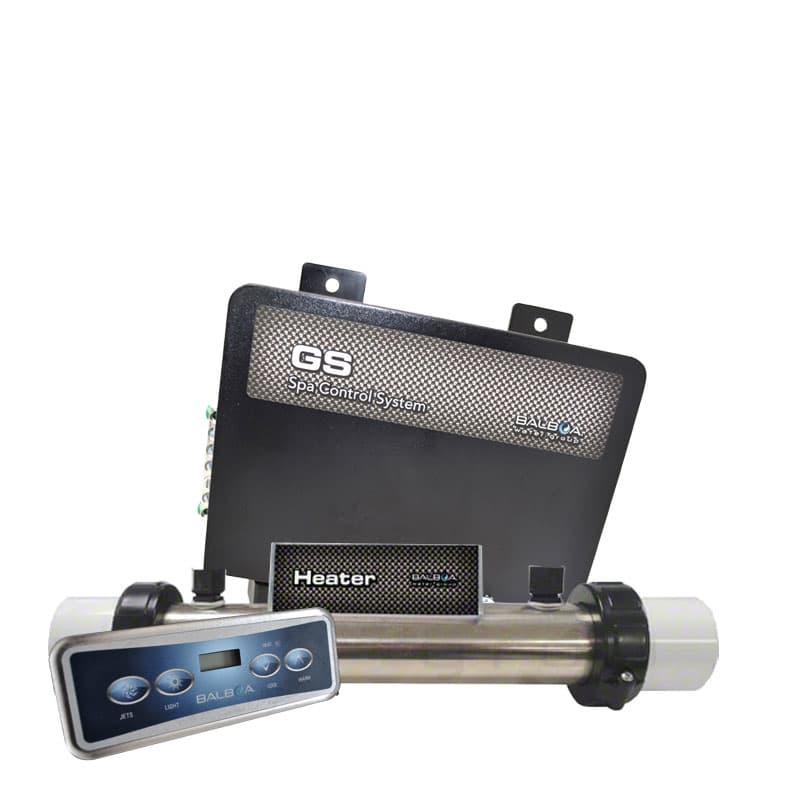

Pack 1.2 Balboa GS100 2.0kW + VL401 Touch Pad
The Balboa GS100 bundle is a great entry-level system that is ideal for smaller spas. It comes with an extremely compact and versatile control box that can be placed anywhere within the spa cabinet. Additionally, the small but intelligent 10″ remote 2kW heater can be installed away from the control box on the spa’s plumbing, providing yet another flexibility when space is limited.
- Volts: 230vac
- Hz: 50
- Watts: Amps: 16A
- Connections: 1.5-inch socket heater union sleeves. Amp cables plug onto the PCB to operate the components.
- Pump 1: Dual speed pump 1
- Heater: 1 x 2kW Heater is a separate unit which plugs into the board.
- Ozone: x 1 (230vac)
- Light: 1 x 12 volt
- Length: 215 mm Width: 73 mm Height: 133mm Topside: 160 mm x 57 mm Length of heater with unions: 375 mm
