- HomeLX Pumps
$118.42
LX DH1.0 with Air Switch (optional)
The LX DH1.0 is a single-speed, 1.0 HP circulation pump is a very common and popular pump. Often used as a circulation pump in both hot tubs and Whirlpool baths for medium to large tubs.
- Volts: 230
- Hz: 50
- RPM Low/High: 2900
- Motor HP Low / High: 1.0
- Amps Low / High Speed: 3.6A
- Capacitor: 5 µF
- Plumbing connections: 1.5-inch suction and discharge ports
- Length: 350 mm Height: 190 mm Depth: 140 mm
- Commonly used with: Suitable for spa brands such as AMC Winer Spa, DanZ Spas, and Spa Serve
$95.76
LX EA350 Circulation Pump with Optional Air Switch
The EA350 is a self drain centre discharge pump. It would be most commonly used as a circulation pump on hot tubs and swim spas but can also be found fitted to many whirlpool baths as well.
- Volts: 230
- HP: 1.0
- Hz: 50
- RPM Low/High: 2,900
- Current Draw: 3.8 A
- Plumbing connections:1.5-inch suction and discharge ports
- Length: 380 mm Height: 205 mm Depth: 160 mm
- Commonly used with: Works with AMC Winer Spas, Passion Spas, Wellis Spas, and DanZ Spas
$142.55
LX EA450 Circulation Pump with Optional Air Switch
The LX EA450 Circulation Pump with Optional Air Switch can be used on Whirlpool Baths that use an air switch facility.
- Volts: 230
- Hz: 50
- Motor HP Low / High: 1.5
- Wet end impeller HP: 1.5
- Current Draw: 5.8 A
- RPM Low/High: 2900
- Plumbing connections:1.5-inch suction and discharge ports
- Length: 420 mm Height: 255 mm Depth: 185 mm
- Commonly used with: Commonly used in Blue Whale Spas and other Chinese-manufactured hot tubs
$131.99
LX JA100 Circulation Pump with Optional Air Switch
The LX JA100 is a single-speed, 1 HP circulation pump designed for hot tubs and whirlpool baths, featuring an optional air switch for manual operation.
- Volts: 230
- Hz: 50
- Motor HP Low / High: 0.75
- Wet end impeller HP: 0.75
- Current Draw: 3.8 A
- RPM Low/High: 2900
- Capacitor: 15 uf
- Plumbing connections: 1.5 inch
- Electrical connections: Comes with plain cable attached
- Length: 350 mm Height: 205 mm Depth: 160 mm
- Commonly used with: Whirlpool bath systems and Chinese Spas, AMC Winer Spa, Spa Serve and others
$201.60
LX JA200 Pump single speed 2.0HP
The LX JA200 is a single-speed, 2.0 HP jet pump designed for hot tubs and spas, particularly those manufactured in China.
- Volts: 230
- Hz: 50
- Motor HP Low / High: 2.0
- Wet end impeller HP: 2.0
- Current Draw: 7.0 A
- RPM Low/High: 2900
- Capacitor: 25 uf
- Plumbing connections: 2 inch
- Electrical connections: Comes with plain cable attached
- Length: 400 mm Height: 215 mm Depth: 190 mm
- Commonly used with: Suitable for various spa brands, including AMC Winer, Cascade, MAAX, Monalisa, and Trinity
$100.00
LX JA35 Circulation Pump 0.33HP
Replacement pump for Whirlpool bath systems and Chinese Spas, AMC Winer Spa, Spa Serve and others
- Volts: 230
- Hz: 50
- Motor Power: 0.33 HP (0.25 kW)
- Wet end impeller HP: 0.33
- Amps Low/High Speed: 1.6
- RPM Low/High: 2900
- Capacitor: 7 µF
- Plumbing connections: 1.5 inch
- Electrical connections: Comes with plain cable attached
- Length: 325 mm Height: 185 mm Depth: 155 mm
- Commonly used with: Whirlpool bath systems and Chinese Spas, AMC Winer Spa, Spa Serve and others
$91.98
LX JA50 Circulation Pump 0.5HP
The LX JA50 is a single-speed, 0.50 HP circulation pump designed for hot tubs and whirlpool baths, featuring an optional air switch for manual operation.
- Volts: 230
- Hz: 50
- Motor HP Low / High: 0.50
- Wet end impeller HP: 0.50
- Current Draw: 2.0 A
- RPM Low/High: 2900
- Capacitor: 7 uf
- Plumbing connections: 1.5 inch
- Electrical connections: Comes with plain cable attached
- Length: 325 mm Height: 185 mm Depth: 155 mm
- Commonly used with: Whirlpool bath systems and Chinese Spas, AMC Winer Spa, Spa Serve and others
$91.39
LX JA75 Circulation Pump 0.75HP
The LX JA75 is a single-speed, 0.75 HP circulation pump designed for hot tubs and whirlpool baths, featuring an optional air switch for manual operation.
- Volts: 230
- Hz: 50
- Motor HP Low / High: 0.75
- Wet end impeller HP: 0.75
- Current Draw: 3.2 A
- RPM Low/High: 2900
- Capacitor: 10 uf
- Plumbing connections: 1.5 inch
- Electrical connections: Comes with plain cable attached
- Length: 325 mm Height: 185 mm Depth: 155 mm
- Commonly used with: Whirlpool bath systems and Chinese Spas, AMC Winer Spa, Spa Serve and others
$141.90

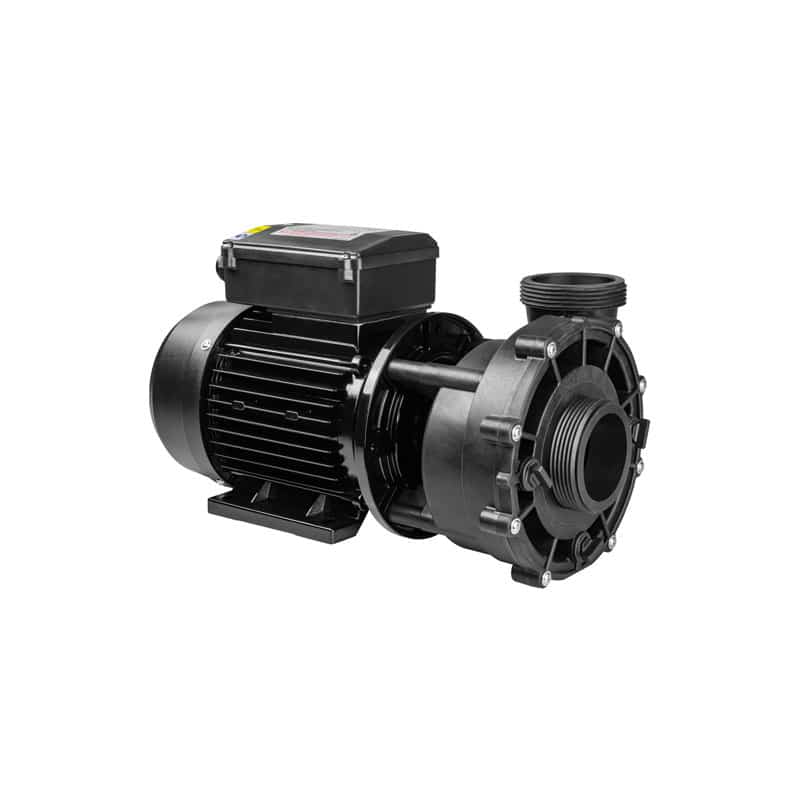

LX LP150 Pump Single Speed 1.5HP
The LX LP150 is a single-speed, 1.5 HP pump commonly used in hot tubs and spas, particularly those manufactured in China.
- Volts: 230
- Hz: 50
- Motor HP Low / High: 1.5
- Wet end impeller HP: 1.5
- Current Draw: 5.8 A
- RPM Low/High: 2900
- Plumbing connections: 2-inch suction and discharge ports (78 mm outer thread diameter)
- Length: 400 mm Height: 205 mm Depth: 205 mm
- Commonly used with: Suitable for various spa brands, including AMC Winer, Cascade, MAAX, Monalisa, and Trinity
$144.48
LX LP200 Single Speed Pump 2.0HP
The LX LP200 is a single-speed, 2.0 HP pump commonly used in hot tubs and spas, particularly those manufactured in China.
- Volts: 230
- Hz: 50
- Motor HP Low / High: 2.0
- Wet end impeller HP: 2.0
- Current Draw: 7.0 A
- Capacitor: 30 µF
- RPM Low/High: 2900
- Plumbing connections: 2-inch suction and discharge ports (78 mm outer thread diameter)
- Length: 400 mm Height: 205 mm Depth: 205 mm
- Commonly used with: Suitable for various spa brands, including AMC Winer, Cascade, MAAX, Monalisa, and Trinity
$163.37
LX LP250 Single Speed Pump 2.5HP
The LX LP250 is a single-speed, 2.5 HP pump designed for hot tubs and spas, particularly those manufactured in China
- Volts: 230
- Hz: 50
- Motor HP Low / High: 2.5
- Wet end impeller HP: 2.5
- Current Draw: 10 A
- RPM Low/High: 2900
- Capacitor: 40 µF
- Plumbing connections: 2-inch suction and discharge ports (78 mm outer thread diameter)
- Length: 400 mm Height: 205 mm Depth: 205 mm
- Commonly used with: Suitable for various spa brands, including AMC Winer, Cascade, MAAX, Monalisa, and Trinity
$178.58
LX LP300 Single Speed Pump 3.0HP
The LX LP300 is a single-speed, 3.0 HP pump designed for hot tubs and spas, particularly those manufactured in China.
- Volts: 230
- Hz: 50
- Motor HP Low / High: 30
- Wet end impeller HP: 3.0
- Current Draw: 10 A
- RPM Low/High: 2900
- Capacitor: 50 µF
- Plumbing connections: 2-inch suction and discharge ports (78 mm outer thread diameter)
- Length: 400 mm Height: 205 mm Depth: 205 mm
- Commonly used with: Suitable for various spa brands, including AMC Winer, Cascade, MAAX, Monalisa, and Trinity
$122.05
LX TDA100 Circulation Pump with Optional Air Switch
The LX TDA100 is a single-speed, 1.0 HP circulation pump designed for hot tubs and whirlpool baths, featuring an optional air switch for manual operation.
- Volts: 230
- HP: 1.0
- Hz: 50
- RPM Low/High: 2,900
- Plumbing connections: 1.5-inch
- Length: 350 mm Height: 190 mm Depth: 140 mm
- Commonly used with: Suitable for various spa brands, including Chinese-manufactured models
$166.20
LX TDA150 Pump Single Speed 1.5HP
The LX TDA150 has a low positioned centre suction port enables the pump to self-drain once the motor is shut off.
- Volts: 230
- Hz: 50
- Motor HP Low / High: 1.5
- Amp Draw: 5.8
- RPM Low/High: 2900
- Capacitor: 20 µF
- Plumbing connections: 1.5 inch
- Electrical connections: 3 Core AMP
- Length: 400 mm Height: 205 mm Depth: 175 mm
- Commonly used with: MAAX, Cascade, Trinity, Monalisa and AMC Winer along with many other newer spa brands appearing in the European market.
$189.04
LX TDA200 Pump Single Speed 2.0HP
The LX TDA200 has a low positioned centre suction port enables the pump to self-drain once the motor is shut off.
- Volts: 230
- Hz: 50
- Motor HP Low / High: 2.0
- Amps Low/High Speed: 7
- RPM Low/High: 2900
- Capacitor: 25 µF
- Plumbing connections: 1.5 inch
- Electrical connections: Comes with plain cable attached
- Length: 400 mm Height: 205 mm Depth: 175 mm
- Commonly used with: Chinese spas and brands like AMC Winer, Trinity E-Zone, Monalisa, and Cascade Spas.
$115.91
LX TDA75 Circulation Pump 0.75HP
The LX TDA75 is a single-speed, 0.75 HP circulation pump designed for hot tubs and whirlpool baths.
- Volts: 230
- HP: 0.75
- Hz: 50
- RPM Low/High:2,700
- Plumbing connections: 1.5-inch
- Length: 350 mm Height: 205 mm Depth: 160 mm
- Commonly used with: Commonly used in Chinese spas, including AMC Winer, Cascade, MAAX, Monalisa, Trinity, and Spa Serve
